Universal Joint

Universal joint consists of spider(cross) and 4 grease-filled roller bearings. It can transmit large torque at low friction. Spider with journal pegs and bearing cases as outer ring were hot forged or cold formed and machined. They are later carburized in furnace so that increased ruggedness and wear resisitance are obtained. Parts are finally ground to designed size under severe tolerance. Oil seal as well as dust cover are also in use to protect internal journal area from intrusion of foreign material. Variety of grades and materials are selected to repond to extreme conditions such as very hot / very cold temperatures.

When Drivelines are called for on a miniature scale Turret Componentry has precisely what you need. Applications where these coupling types are commonly used are manufacturing machines, marine applications, valve handles etc. Within the Precision Coupling category we have:

• Hardened Bush Type
• Stainless Steel Type

  Read more ...

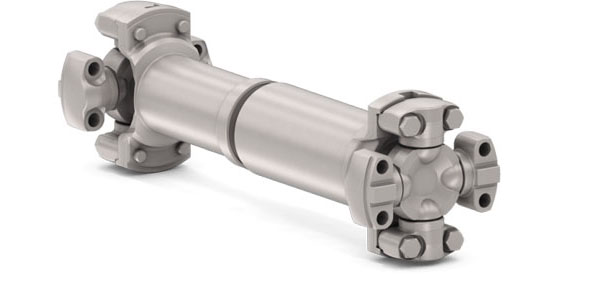

A key feature of the Mechanics Universal Joint product range is the service free design which is achieved through optimisation of the spline geometry and spline grease for off-highway loads and temperatures and advanced slip seals.

Read more ...

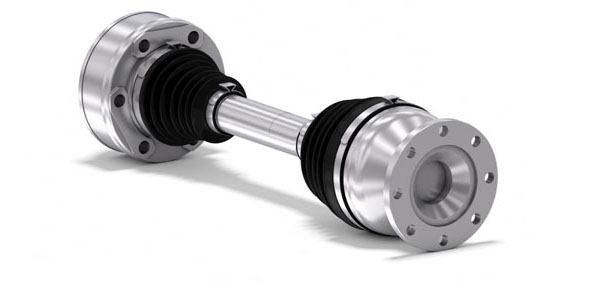

Constant velocity driveshafts are ideally suited for applications where unequal joint angles are encountered and low vibration generation is needed. They are reliable and proven transmission elements. Typical applications of constant velocity driveshaft, for example:

Read more ...
