For Water, Oil, Gas, Chemical
- The double-row deep-groove ball bearing is dust-proof or hardened with carbon steel or cast iron on both the housing and nipple sides.
- It has a structure with sufficient strength against complex loads such as thrust, radial, and bending moment.
- By providing ball insertion plugs in one or two places and performing integrated processing with the ball race, it has a structure that does not completely interfere with smooth rotation.
- Equipped with main seal packing and dust intrusion prevention packing.
- The main seal packing can be used for a wide range of purposes by selecting the most suitable type and material for the usage conditions from the O-ring or specially shaped packing, rather than the model suitable for the fluid type, pressure, and temperature.
Application : Water, Oil, Air, Gas, Chemical
Material : SS400
Max. Pressure : 2.0MPa (JIS 10K Flange) (NBR O-ring)
Max. Temp. : 100°C

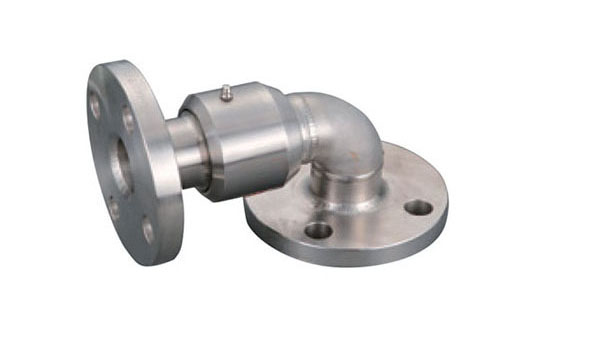

Feature : Larger diameter flange connection joint most suitable for medium pressure used
Fluid: In case of chemicals, please be sure to inform us the chemical name in order to select the most suitable sealing material.
