For Steam, Water, Hot Water, Air, Oil, Thermal Media

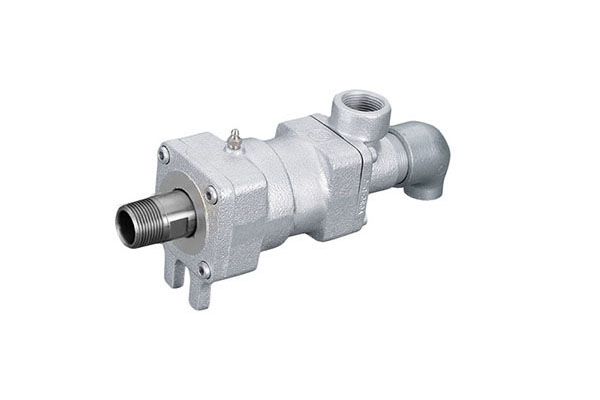

Rotary joint R1000 series that provides a stable sealing function even for fluids that may leak in high temperature and high pressure environments.
The double seal structure and the seal surface pressure that increases and decreases in proportion to the fluid pressure inside maintain complete airtightness inside.
Since the housing uses high-density, high-performance carbon for the plain bearing that receives the load of the rotary joint body, the bearing is not locked due to high heat operation, and it demonstrates outstanding durability.
Application : Steam, Water, Hot Water, Air, Oil, Thermal Media
Max. Pressure : 1.5MPa
Max. Temperature : 180°C
Max. Speed : ½” – 1 ½” = 300minˉ¹(rpm) / 2” – 4” = 150minˉ¹(rpm)
