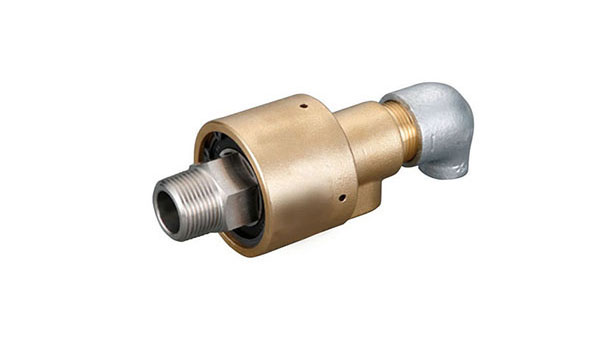

For Water, Hot Water, Air, Gas, Oil
Even at high speeds, there is little resistance and it is economical.
Brass and stainless steel are used for the wetted parts to improve corrosion resistance, and shield ball bearings are used to enable grease-free operation.
The ground breaking simple structure not only facilitates maintenance, but also realizes a lightweight and compact style. The housing is made of brass.
Application : Water, Hot Water, Air, Gas, Oil
Max. Pressure ： Liquid = 1.0MPa / Gas = 0.7MPa
Max. Temperature : 100°C
Max. Speed : 1/8” – 1” = 1500minˉ¹(rpm) / 1 ¼” – 1 ½” = 1000minˉ¹(rpm)
