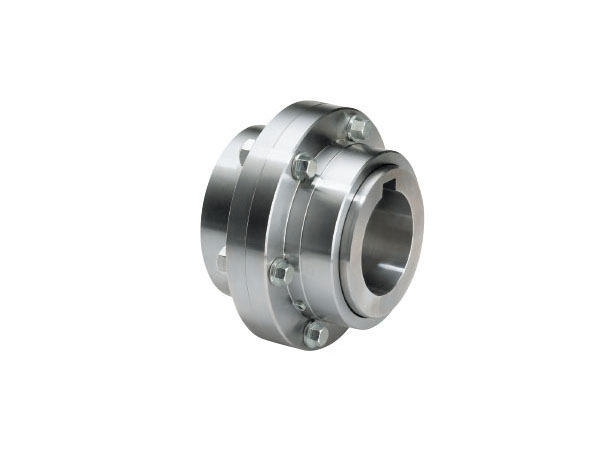

The Woo Chang gear coupling is a shaft coupling powered by a sleeve and a crown hub. It conforms to the AGMA standard of the USA and the JIS standard of Japan. The teeth of the hub are machined into crowned gears with three equal sides allowing the coupling to tolerate parallel, angular, and axial misalignment by transmitting power through contact points along a curve (instead of constant surface contact).
The coupling incorporated SM45C steel to maximize durability during high speed rotation and high load operation. Custom couplings can be produced to meet client specifications.
Features :
- Crowned gear teeth
- Completely interchangeable with AGMA standards
- High torque capacity
- Torsionally rigid and flexible
- Easy to assemble and install
- Rotation with sliding operation
- Tolerates parallel, angular, axial and composite misalignment
